Premium Glove Boxes For Production & Research
PureLab HE Key Components
An overview of the major system elements that support controlled atmosphere processing, operator visibility, and integrated system control.
Siemens PLC and 7” Touch Screen display
Delryn Oval glove ports for 8” gloves
Abrasion resistant polycarbonate window, 3/8” thick
15” Large antechamber with Pirani gauge and auto-cycles

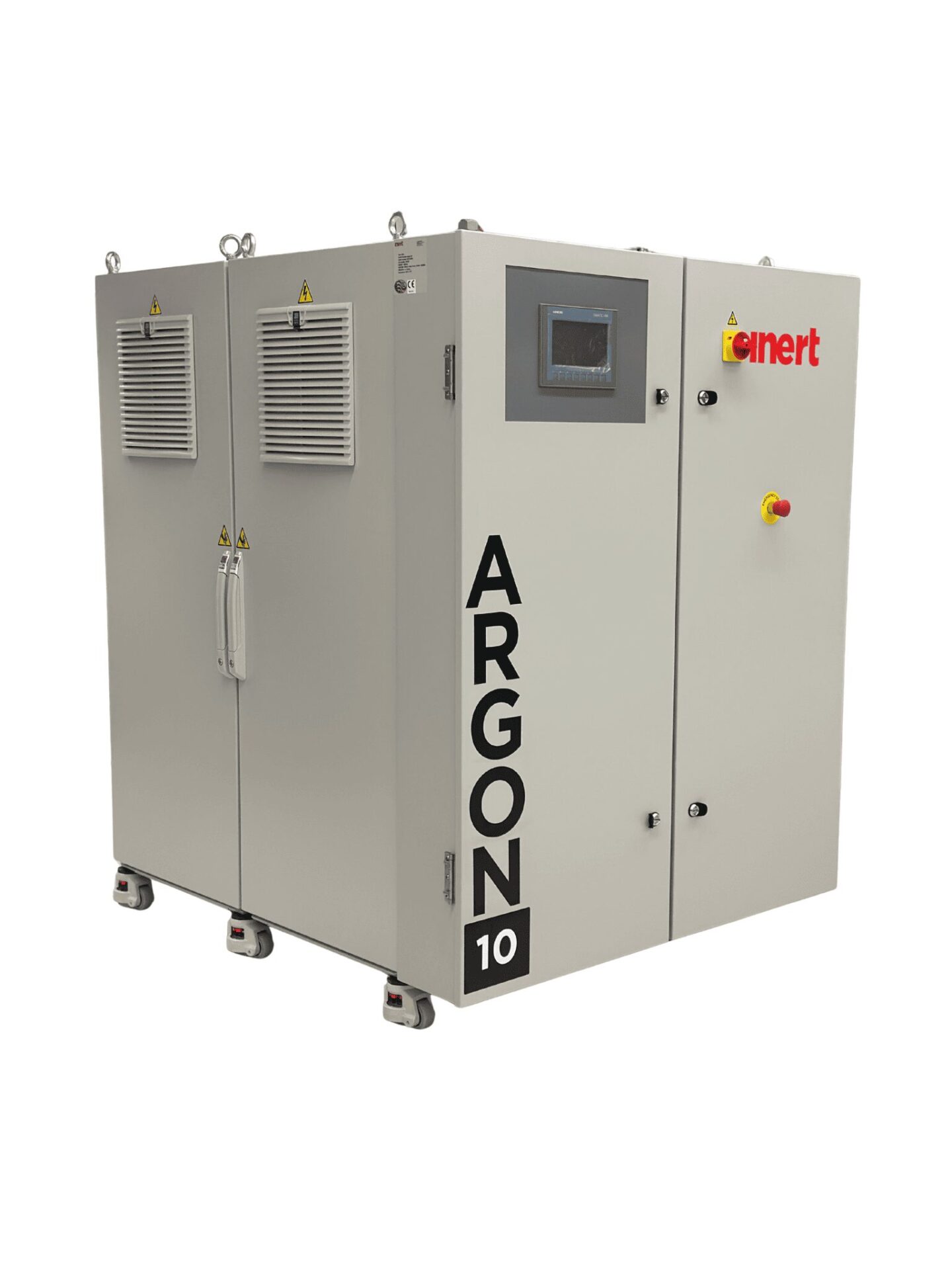

Single or Dual column gas purifier for ultra-low Oxygen and Moisture levels
Modular design glovebox, made out of stainless steel 304, built for your projects. Certified ISO10648-2 Leak tight

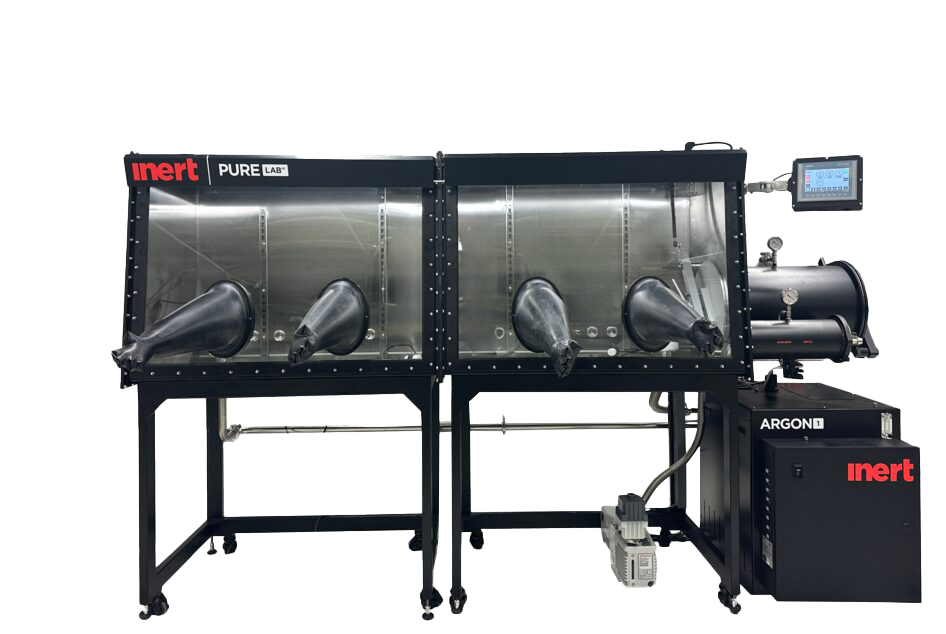

PureLab High Efficiency (HE) is our premium line of glove box systems, designed specifically for production and research applications. Time management and maximum efficiency are crucial so this line is fully automated and our most flexible platform, allowing for easy integration of third-party equipment. All PureLab HE Glove Box Systems are manufactured with the highest quality components from globally recognized manufacturers. Expansion features for manufacturing and laboratory glove box systems include additional antechambers for thru-flow work processes, cold storage freezers, process vacuum ovens, furnaces, and integration with a solvent purification system. A full line of glove box parts and accessories are also available. PureLab HE Glove Boxes can be equipped with argon, nitrogen, or any inert atmosphere your process requires.
Size & Dimensions
2GB Glovebox System
2000 mm Wide x 1067 mm Deep x 1921 mm High
3GB Glovebox System
2315 mm Wide x 1067 mm Deep x 1921 mm High
4GB 1800 Glovebox System
2595 mm Wide x 1067 mm Deep x 1921 mm High
4GB 1950 Glovebox System
2741 mm Wide x 1067 mm Deep x 1921 mm High

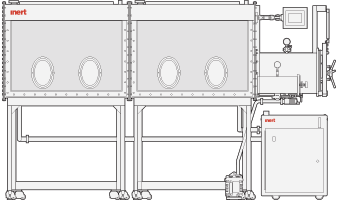

4GB 2500 Glovebox System
3218 mm Wide x 1067 mm Deep x 1921 mm High
