Class 1 Div 1/2 Glovebox

01
02
03
04
05
06

01

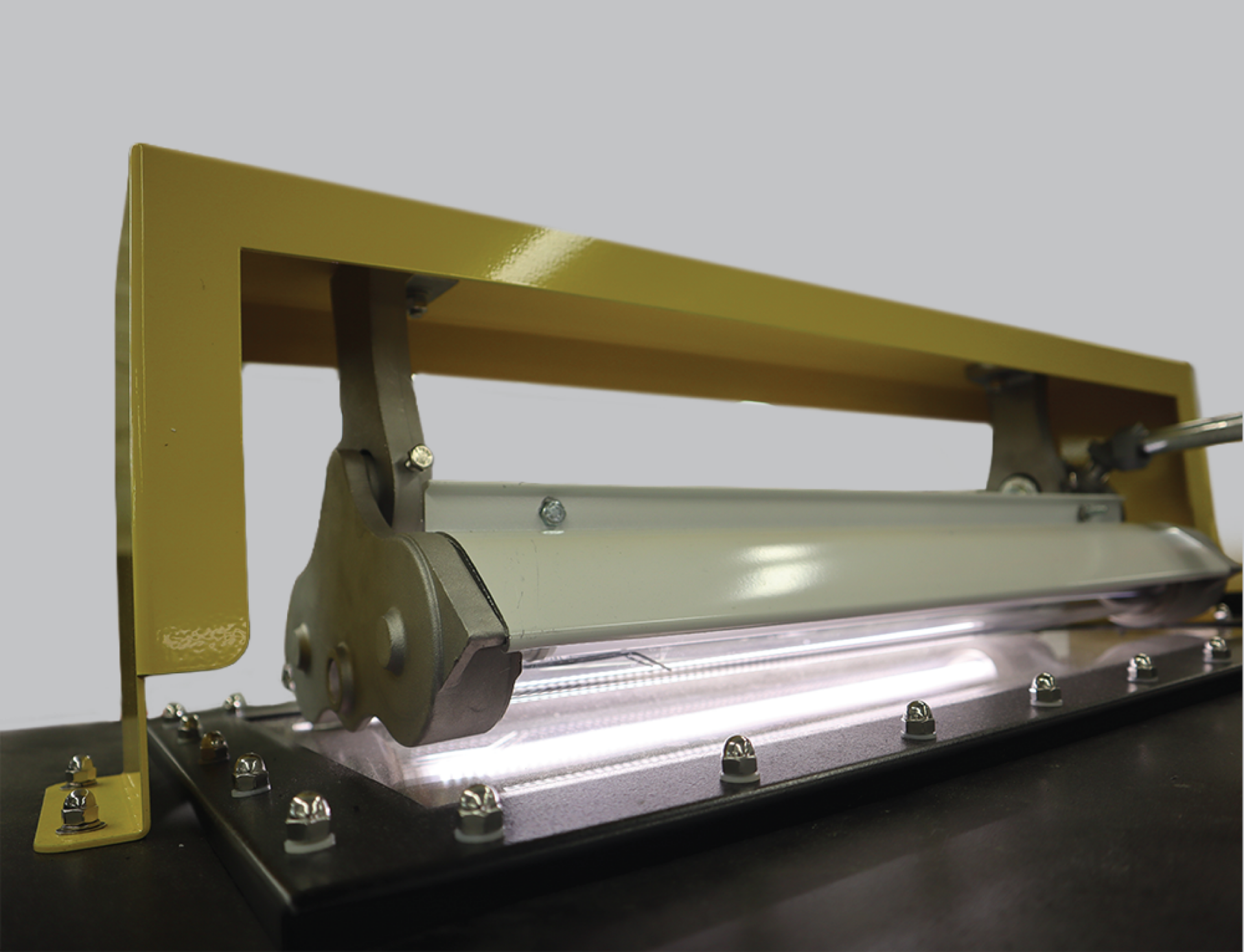

LED Lights
Rated for Class 1 Division 1 and Division 2 locations, providing bright and usable light inside your glovebox.

02

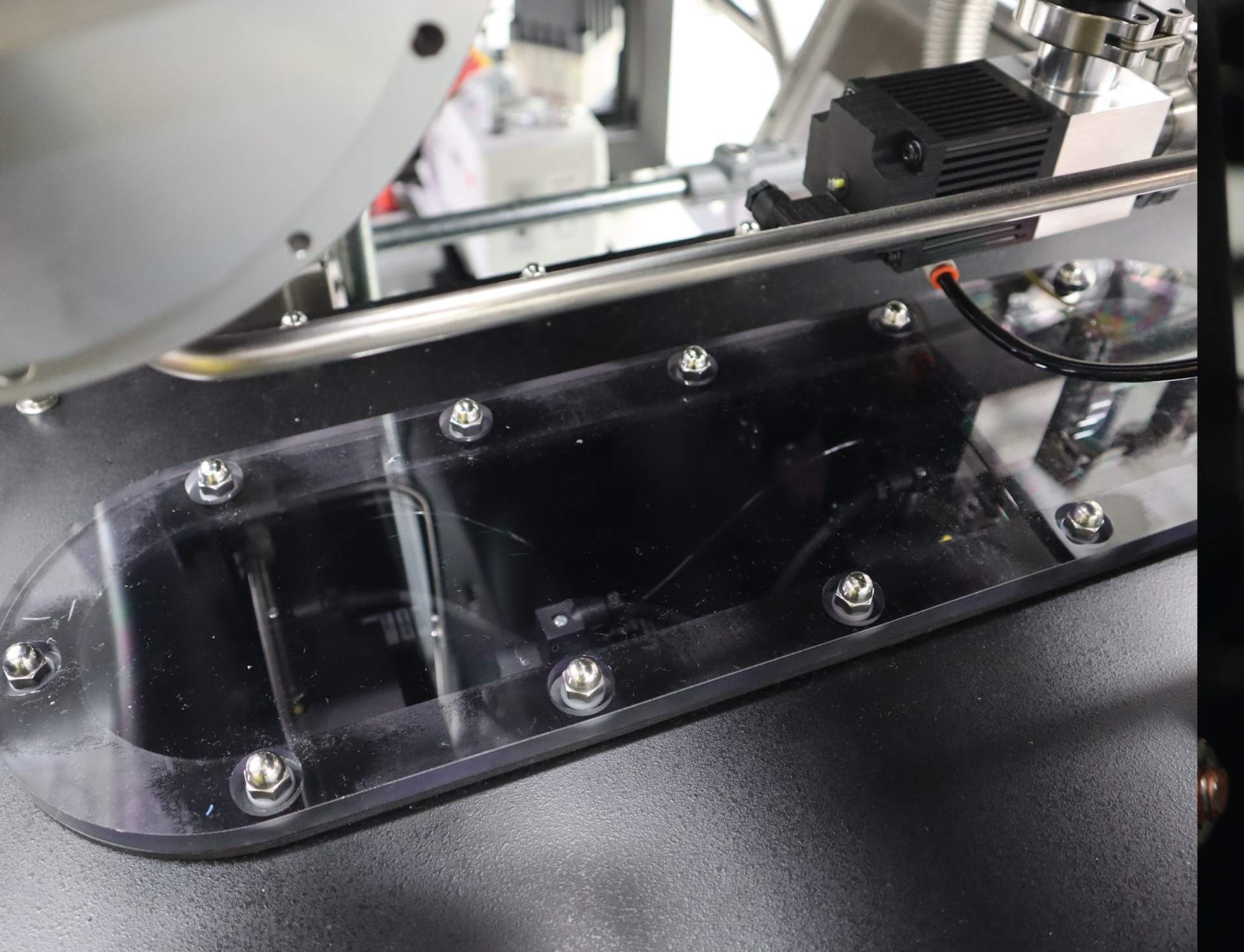

Switches and Wiring
All contained within UL1203 approved rigid conduit and junction boxes for use in Class 1 Division 1 or Division 2 hazardous locations.

03

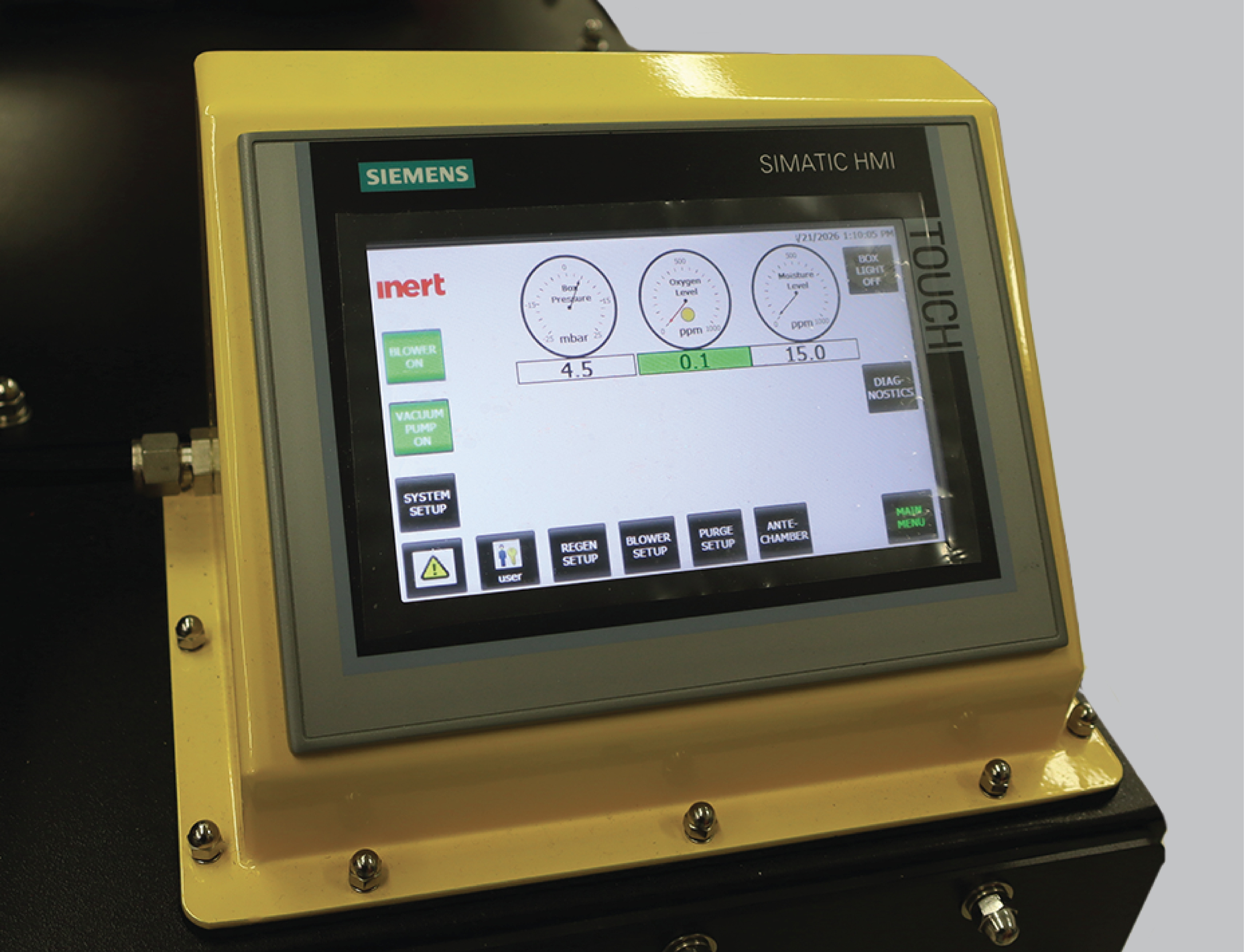

HMI
Can be used as shown in Class 1 Division 2 environments, or placed inside an NFPA 496 Purged and Pressurized Enclosure for Class 1 Division 1 locations.

04

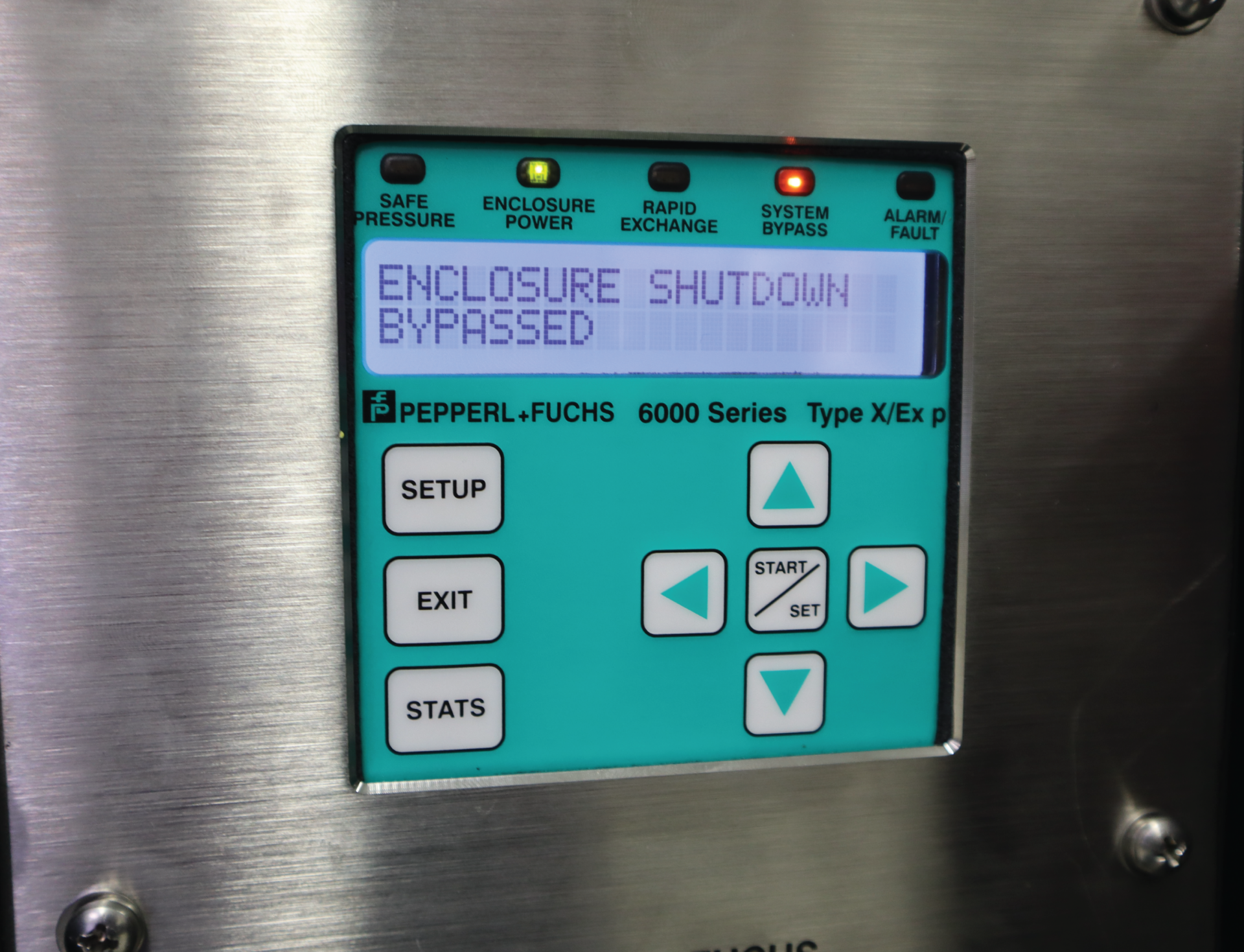

Gas Purifier
Uses a Pepperl + Fuchs 6000 series controller to control an NFPA 496 approved purged and pressurized enclosure.

05

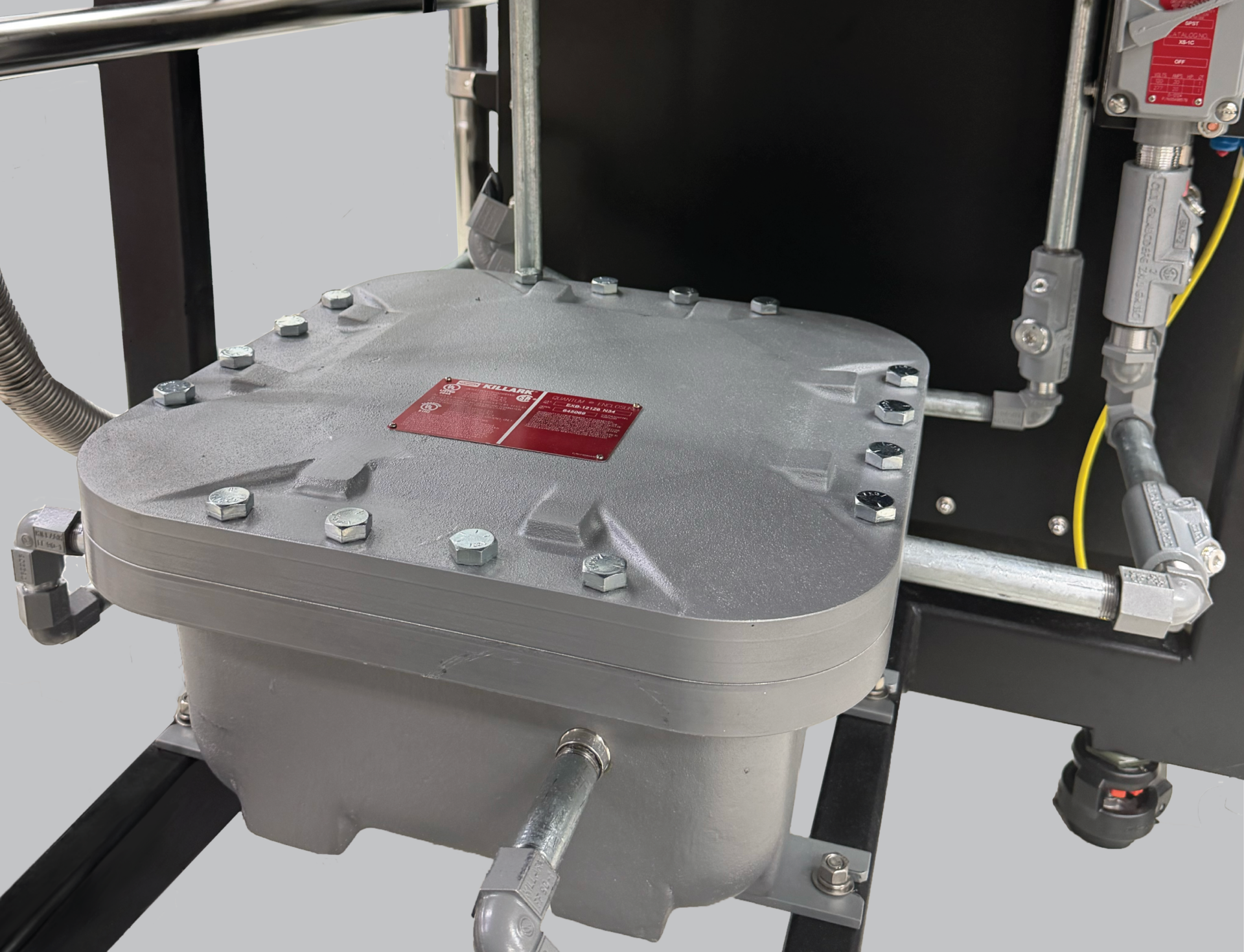

Junction Box
Receives facility power and distributes it throughout the system in an NFPA 496 and UL1203 approved manner.

06

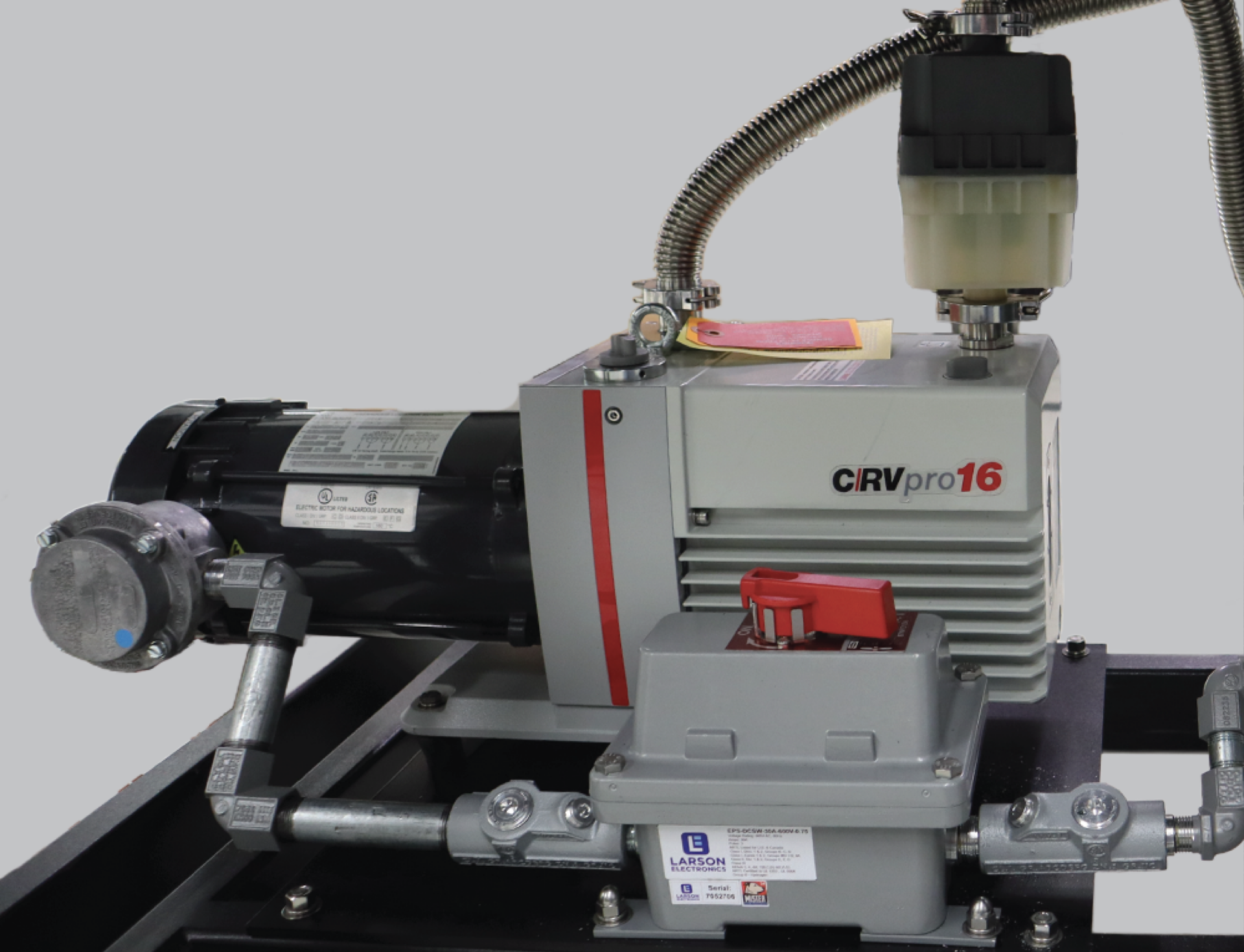

Vacuum Pump
Equipped with a motor suitable for Class 1 Division 1 and Class 1 Division 2 hazardous locations. Includes a UL 1203 compliant disconnect switch.

01
LED Lights

02
Switches and Wiring

03
HMI

04
Gas Purifier

05
Junction Box

06
Vacuum Pump
Inert glovebox solutions for high-risk environments and hazardous areas

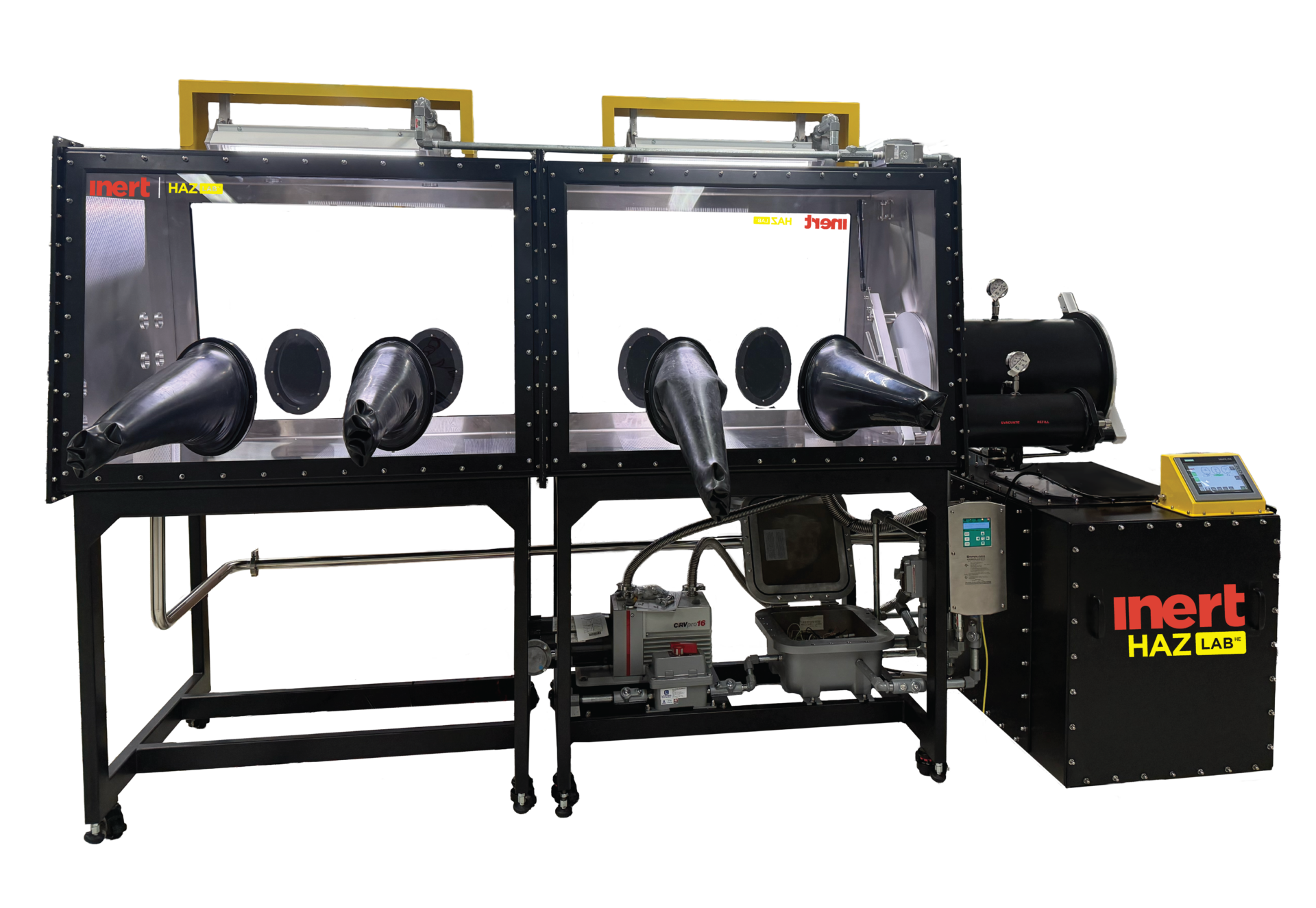

When operating in environments with flammable solvents, combustible dust, or volatile powders, ensuring operator safety and regulatory compliance is non-negotiable. Inert’s HAZLAB Class 1, Division 1 (C1D1) and Class 1, Division 2 (C1D2) gloveboxes are engineered specifically for these hazardous conditions.
Developed in close collaboration with your Health & Safety and engineering teams, our gloveboxes are built to meet the most rigorous safety and operational standards, while integrating seamlessly into your existing processes.
Our systems can be configured with a variety of custom options, including connections to hoppers, mixing vessels, and powder dispensing units, ensuring the glovebox is tailored to your needs.
Controlled by a PLC with a large-format touchscreen for user interaction (Siemens or Allen Bradley), the PLC system can be connected to a customer IT network infrastructure allowing real time data monitoring of the glovebox status. This enables streamlined workflows for operators while maintaining strict adherence to safety protocols and compliance requirements.
Key features
- Design compliant for C1D1 and C1D2 Group A, B, C and D classifications
- Fully sealed and interlocked containment for operator and environmental protection
- Built to your specifications based on thorough risk assessments
Whether you’re managing dust explosion risks or other critical processes, Inert gloveboxes offer robust, compliant solutions tailored to your operational needs.
| Protection type | Operator and process protection, inert gas |
|---|---|
| Industries | Chemical, Oil and Gas, Industrial powder handling |
| Controls | Siemens or Allen Bradley PLC with large-format touchscreen |
