INERT SAFETY & REGULATION VALVES

VMR and VMS valves are designed for user protection in the event of a containment breach inside your enclosure. Design to protect the operator in all circumstances, VMR and VMS valves are installed on negative pressure gloveboxes operating with inert atmosphere or under filtered air.

• Available in various sizes to meet the AGS Standard of 125ft +/-25ft/min face velocity.

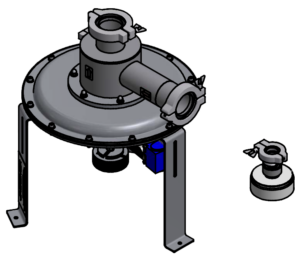

VMS – Safety Valve

Operation mode:Safety valve for inert atmosphere gloveboxes
Glovebox type: Negative pressure with gas
Industries: Nuclear, Pharma

• Stainless steel 304L or 316L
• Electropolished
• ISO10648-2 leak test certified
• Connection ports: ISO KF50 or CF flange
• Safety mode, immediate response in the event of containment breach
• Position sensors for operator safety and awareness

Key features

• Adjustable negative pressure detection levels
• Alarm position sensors
• High reliability
• Globally recognized for critical applications
